Home > Hydraulics Hoses > NG – SAE100R15
Extreme high pressure and high pressure hydraulic application. Meets SAE100R15 specification.
Inner Tube: Oil resistant synthetic rubber NBR
Outer Cover: Oil, environment, abrasion resistant synthetic rubber
Reinforcement: 4 layers high tensile spiral wire for size 1 inch and below, 6 layers for size 1-1/4 inch to 2 inch
Temperature: -40°C to 120°C continuous service
Standards: Meet and exceeds SAE100R15, ISO 3862
Extreme high pressure and high pressure hydraulic application. Meets SAE100R15 specification.
Inner Tube: Oil resistant synthetic rubber NBR
Outer Cover: Oil, environment, abrasion resistant synthetic rubber
Reinforcement: 4 layers high tensile spiral wire for size 1 inch and below, 6 layers for size 1-1/4 inch to 2 inch
Temperature: -40°C to 120°C continuous service
Standards: Meet and exceeds SAE100R15, ISO 3862
Related Products

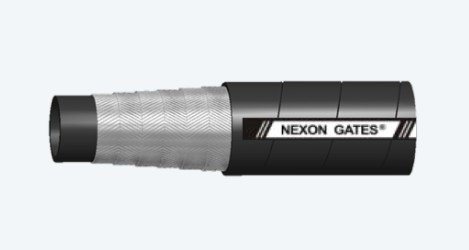

SPIRAL WIRE HOSE

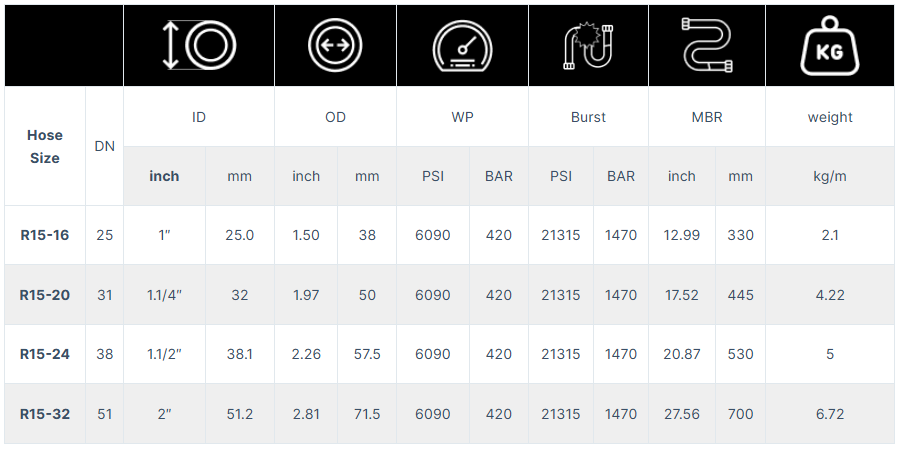

- SPECIFICATION
- APPLICATION
Extreme high pressure and high pressure hydraulic application. Meets SAE100R15 specification.
- CONTRUCTION
Inner Tube:
Oil resistant synthetic rubber NBR
Outer Cover:
Oil, environment, abrasion resistant synthetic rubber
Reinforcement:
4 layers high tensile spiral wire for size 1 inch and below, 6 layers for size 1-1/4 inch to 2 inch
Temperature:
-40°C to 120°C continuous service
Standards:
Meet and exceeds SAE100R15, ISO 3862
